Single Impeller
Regenerative Blower
Our professional-grade Single Stage Side Channel Blower, the SC Series, is engineered for powerful, continuous air movement. Ideal for heavy-duty industrial drying, aeration, and vacuum conveying, it delivers high pressure with absolute reliability and 100% oil-free purity.
Model: SC Series Single Stage Blower
100% Oil-Free Air
No contact between impeller and pump body means zero lubrication required. Guaranteed clean air, perfect for food drying and sensitive thermal processes.
Dynamic Balancing
Precision-balanced impellers ensure extremely smooth operation, ultra-low vibration, and reduced noise levels (64dB – 75dB) for a quieter factory.
Industrial Durability
Constructed with ADC12 high-strength aluminum alloy and Class F insulation. IP55 protection rated for continuous operation in harsh industrial environments.
SC Series Selection Guide (Single Stage)
Find the perfect match for your requirements. The SC Series covers a wide range from small-scale applications to heavy-duty needs.
| Model | Power (kW) | Max Flow (m³/h) | Max Pressure (mbar) | Max Vacuum (mbar) | Weight (kg) |
|---|---|---|---|---|---|
| SC-0400-K1S1 | 0.4 | 80 | 110 | -100 | 11 |
| SC-0750-K1S1 | 0.75 | 145 | 140 | -120 | 15 |
| SC-1500-K1S1 | 1.5 | 210 | 190 | -170 | 23 |
| SC-2200-K1S1 | 2.2 | 210 | 220 | -190 | 25 |
| SC-3000-K2T1 | 3.0 | 315 | 270 | -240 | 34 |
| SC-4000-K2T1 | 4.0 | 315 | 320 | -280 | 39 |
| SC-5500-K2T1 | 5.5 | 530 | 300 | -280 | 62 |
| SC-7500-K2T1 | 7.5 | 530 | 320 | -300 | 68 |
| SC-11000-K3T7 | 11.0 | 1050 | 280 | -280 | 102 |
| SC-15000-K3T7 | 15.0 | 1050 | 350 | -320 | 108 |
| SC-18500-K3T7 | 18.5 | 1050 | 400 | -380 | 125 |
| SC-25000-K4T7 | 25.0 | 2050 | 280 | -280 | 185 |
* All standard models feature IE2/IE3 efficient motors. Custom voltages and explosion-proof models (ATEX) available on request.
Technical FAQ: Single Impeller Blowers
What is the difference between Single Stage and Double Stage blowers?
A Single Impeller (Single Stage) blower utilizes one spinning impeller to move air. It is optimized for high airflow volume (up to 2050 m³/h), making it perfect for air knife drying, wastewater aeration, and pneumatic conveying. Double stage blowers use two impellers to generate higher pressure but with lower overall airflow.
Can the SC Series operate in both pressure and vacuum modes?
Yes. Because of its side channel (regenerative) design, the SC Series can function as both a high-pressure blower (blowing air out) and an industrial vacuum pump (sucking air in). For example, the SC-18500-K3T7 can deliver up to 400 mbar of pressure or -380 mbar of vacuum.
Is the air output safe for food and pharmaceutical applications?
Absolutely. The impeller spins within the housing without making physical contact, eliminating the need for internal oil lubrication. This guarantees 100% oil-free and emission-free air, fully complying with FDA guidelines for food packaging and pharmaceutical processing.
Optimized for
Heating & Drying Solutions
The Single Impeller Blower acts as the crucial air-knife component or main circulation pump in your thermal processing systems. Its vortex technology ensures uniform heat distribution and high velocity required for water removal.
Primary Applications:

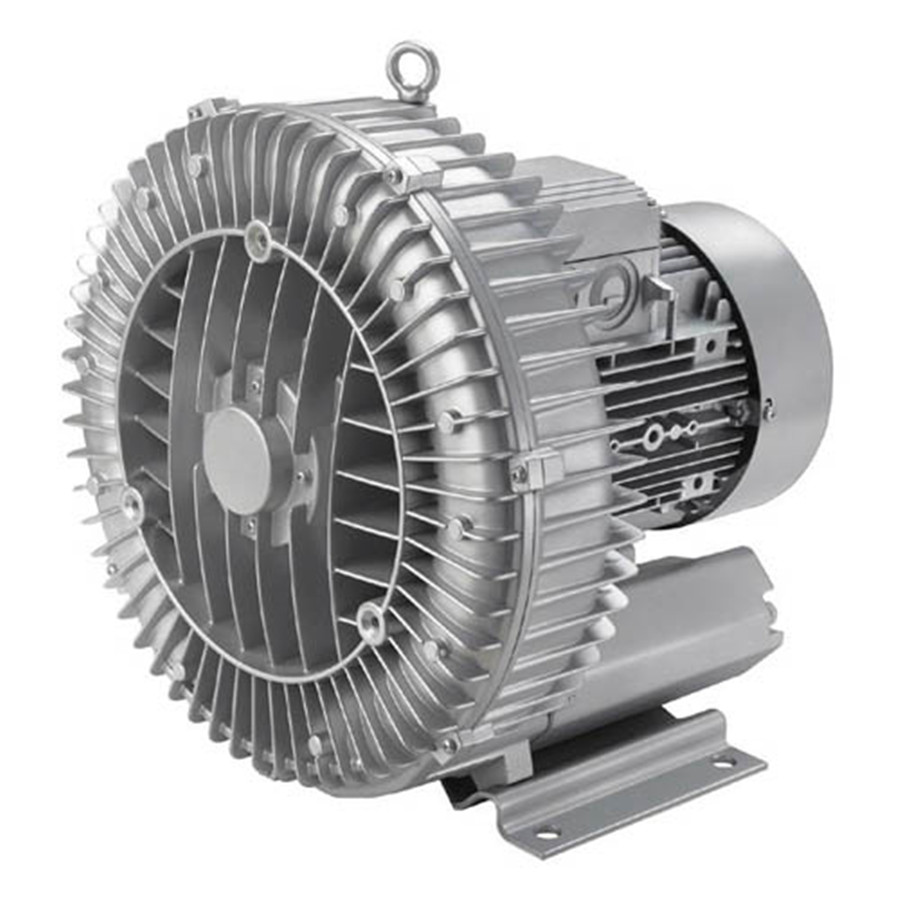

SC Series Single Impeller Blower – Heavy-Duty Construction
